    380v Printing Book Production Line Automatic Glue bound Binding Machine

    Ask Lasest Price
    Brand Name : CWH
    Model Number : AFPF-1020C-P2
    Certification : CE
    Supply Ability : 10 Set/Sets per Month
    Price : negotiable
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

    380v Printing Book Production Line Automatic Glue bound Binding Machine

    Hot automatic cold glue binding machine printing book production line


    Product Description

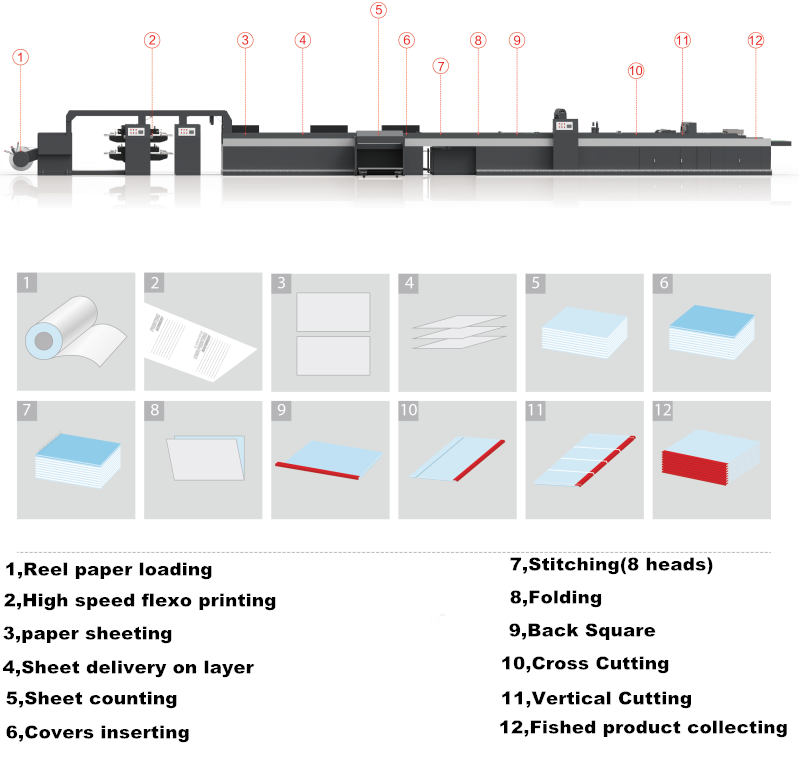

    Glue bound notebook production line is researched by CWH. It is the latest notebook and exercise book production line with Non-axis design.


    It's controlled by German Siemens servo motor, PLC and advanced electrical control system in most of the production processes.


    High level electrical component,, to change the traditional merchanical gear thoroughly, more easy to operation, stable performance, positioning precision and quality excellence.


    This is the ideal production line for glue bound notebook and exercise book.


    Machine Specification
    Printing Width520-790 mm
    Printing Speed350 m/min
    Printing Length1020 mm
    Sheeting Length290-780 mm
    Counting5-50 sheets
    Reel Paper Dia1200 mm
    Paper Thickness50-120g
    Min.size of book125-125 mm
    Max.size of book297-210 mm
    Cover Thickness150-300 g
    Attached page thickness100-200 g
    Max.output frequency45 times
    Book thickness8 mm
    Main motor Power65 KW
    Machine Dimension26.5 x 9.8 x 2.3 m
    Weitht22T
    Customized

    Available

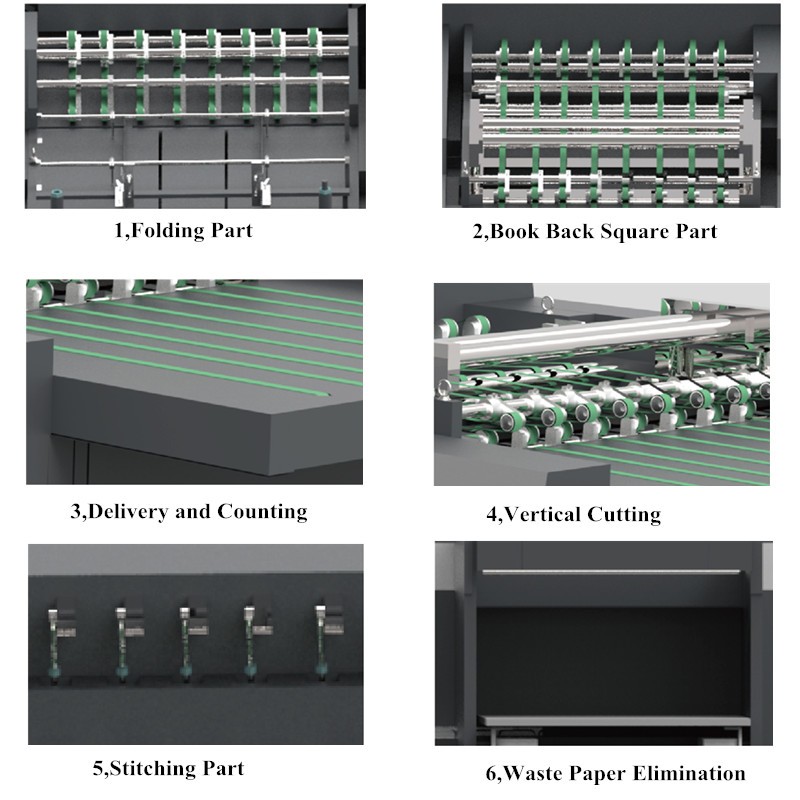

    Partial Description



    380v Printing Book Production Line Automatic Glue bound Binding Machine


    380v Printing Book Production Line Automatic Glue bound Binding Machine


    Our Services

    Pro-sales services:

    • We could make some changes in our machine according to your requirements.
    • We could introduce the reliable sub-material supplier for you.
    • We could offer you all necessary spare parts in shortest time.
    • We could share how to set up your factory and production line.

    After-sales services:

    • We could arrange our engineer to your company for machine installation, training,maintaince and re-installation.
