    Print And Cut Paper Ruling Device Paper Thickness 45-120gsm

    Print And Cut Paper Ruling Device Paper Thickness 45-120gsm


    Brief introduction

    1. automatic low friction tension control system. Kortis brand, made in France.

    2. machine cutter cutting knife was made according to the design of England SHIM (includes the up knife/rotaty knife & down knife/fixed knife)

    3. all the printing part bearing, made in Germany.

    4. pneumatic vibrating stacking unit. Max. vibrating frequency: 1400times/min. This part is made in Switzerland.

    5. main electronic components suppliers from famous brand, like PLC, transducer, air switch, colour humanity of Mitsubishi brand.


    Technical parameters

    Auto flexo printing machine AFP-1060
    max paper size1020mm
    max.paper diameterΦ1100
    paper thickness45-120g/m2
    cutting length scale400-780mm
    max machine speed180m/min
    paper stacking height0-1500mm
    power14kw
    machine weight6.5t
    machine dimension8.5 x 3.3 x 2.2 mm

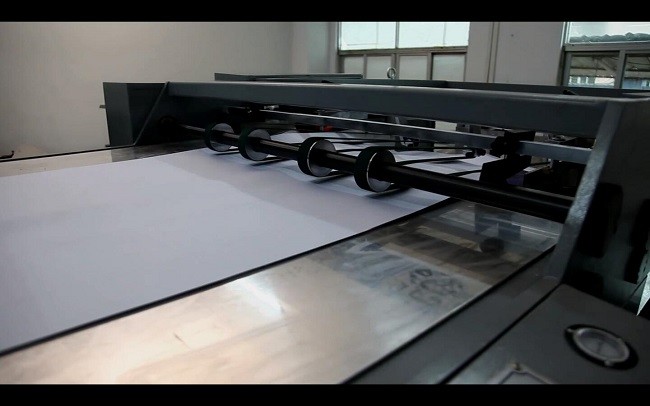

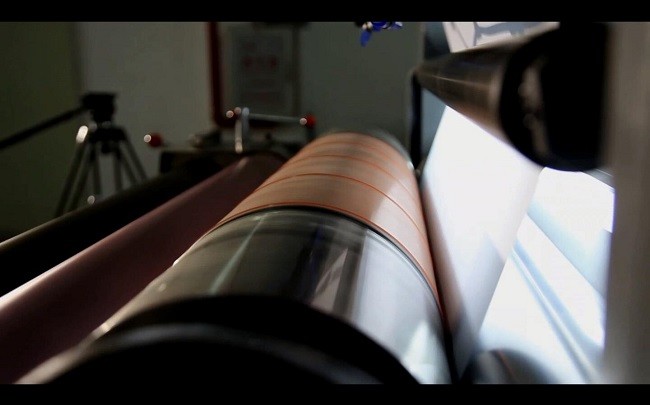

    Pictures

    Print And Cut Paper Ruling Device Paper Thickness 45-120gsm

    Print And Cut Paper Ruling Device Paper Thickness 45-120gsm

    Print And Cut Paper Ruling Device Paper Thickness 45-120gsm


    Main performance

    1. the machine design is advanced and reasonable, easy operation, stable performance with firm structure.

    2. multi-functional machine with printing and sheeting functions. Professionally print 1+1/2+2 products, one time print for front and reverse sides.

    3. all computer tension control, electronic parts are from famous suppliers. Humanity interface improves performance of the machine.

    4. low ink consumption, durable flexographic plate, high speed, easy maintenance and low cost.


    Machine certification

    Print And Cut Paper Ruling Device Paper Thickness 45-120gsm


    Package & shipment

    Print And Cut Paper Ruling Device Paper Thickness 45-120gsm
