    Medical Mask Making Machine/Ultrasonic Welding 0.5Mpa Disposable N95 Mask Making Machine

    Ask Lasest Price
    Brand Name : CWH
    Model Number : FM-60
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets / month
    Delivery Time : 4 working days
    • Product Details
    • Company Profile

    Medical Mask Making Machine/Ultrasonic Welding 0.5Mpa Disposable N95 Mask Making Machine

    Automatic disposable flat face mask production line


    General introduction

    1. The machine is a full-automatic, foldaway and high-speed planar mask production line.

    2. It uses the whole roll to load material. It can recombine multilayer non-woven fabric, fold and embed the cross bar of the mask with the automatic tension sensing control system and automatic edge correction system.

    3. After hot pressing with high temperature, round welding and cutting, it completes a mask. This machine can output masks at high speed.


    General configuration

    No.ItemDescription
    1Size3500mm(L) x 1200mm(W) x 1700mm(H)
    2Color

    International standard color---Warm Grey(1C)

    Follow this standard in the absence of special instructions.

    3Weight≤1500kg, ≤500kg/m2(the ground bearing)
    4Power Supply220V,50HZ,9KW(rated power)
    5Operating Environment

    10℃~35℃(temperature),

    5HR~35%HR(humidity),

    No flammable and corrosive gas,

    No dust(Clean class must not be lower than 100,000 )


    Main constituent structure

    1. Maximum 3 sets of the rolls for placing fabric, maximum winding diameter---Max600mm.

    2. Fabric unwinding method: Actively unwind. Unwinding automatically according to the position of tension roller.

    3. Welding of the cross bar: Unwinding, laying flat, fixed length conveying, cutting and welding.


    The product specifications

    The specifications and sizes of masks shall be provided by Party A. To ensure the size of the product, Party B is responsible for making hob and cutter according to the drawings. Party A shall provide the drawing of masks’ specification and dimension. Party B shall provide the above specifications.


    The production capacity of the machine

    1. Production efficiency: 0-700 per minute(the specific capacity depends on the operator)

    2. Scope of masks: 170mm-175mm long, 95mm wide

    3. The symmetry of folding: +/-1mm

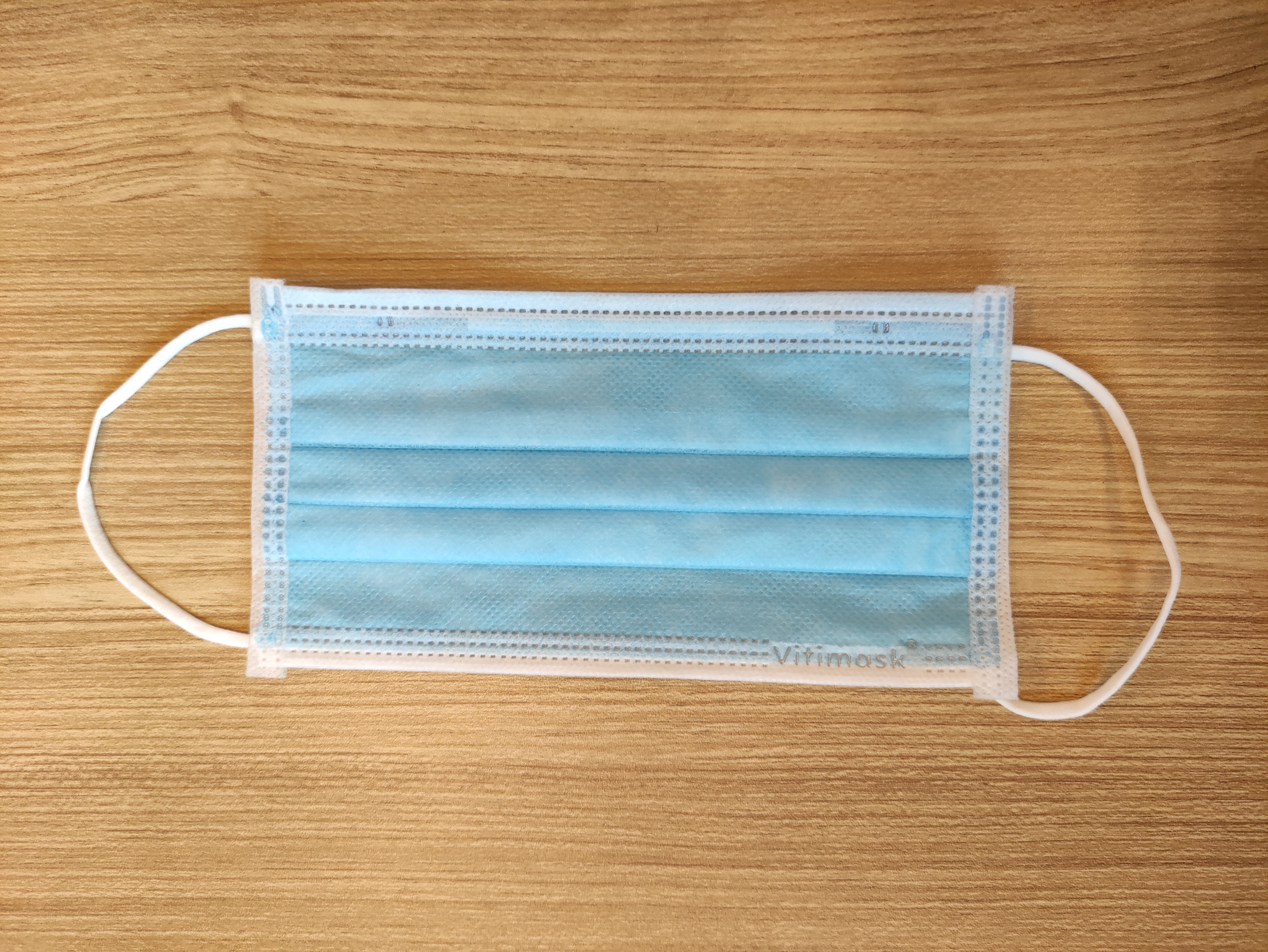

    Machine picture

    Quality Medical Mask Making Machine/Ultrasonic Welding 0.5Mpa Disposable N95 Mask Making Machine for sale
