    100pcs/Min 12kw Korea KF94 Mask Maker Machine

    Ask Lasest Price
    Brand Name : CWH
    Model Number : KF94-50
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets / month
    Delivery Time : 4 working days
    • Product Details
    • Company Profile

    100pcs/Min 12kw Korea KF94 Mask Maker Machine

    Korea KF94 mask maker machine


    Machine brief introduction
    The machine is designed to the produce of the fish type masks:

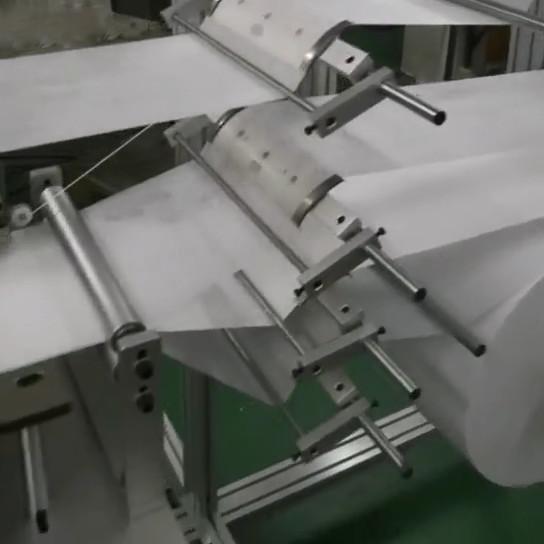

    1. after being fed into the machine, the entire roll of cloth is unrolled through roller drive and then the edge of the cloth is weld.

    2. the nose wire coil is unpacked, cut, automatically folded, and welded.

    3. After being cut and formed, the masks are conveyed to ear-loop welding post to be welded.

    4. The finished masks are conveyed through conveyor belt for collection.


    Machine features
    1. The machine adopts ultrasonic melting technology and the operation needs one staff only.
    2. The production process, including material feeding, nose wire inserting, edge welding, and product cutting, is fully automatic.
    3. The framework structure of the machine is aluminum, which enables rust-free, durable, attractive and easy to clean.
    4. The machine adopts PLC control system and is equipped with pneumatic components of international brands.


    Parameters and Requirements

    Working Speed80~100pcs/min
    Mask Size215mm X 79mm
    Machine dimension7000 x 3500 x 1900 mm (L * W * H)
    Power SupplyAC 220V,50Hz,Rated power12kw
    Air Pressure0.5~0.6mpa
    Air flow300L/min
    Machine weight1500kg
    Working Environment

    Temperature 10~35℃,humidity 5~35%HR,

    dust-free (cleanness is no less than 100,000)


    Main Components

    ComponentsBrand
    PLCInovance
    Servo systemInovance
    Pneumatic componentAirTAC/SMC
    Photoelectricity switchPanasonic/Omron
    Low-voltage apparatusSchneider
    UltrasonicChinese famous brand
